JX-9015

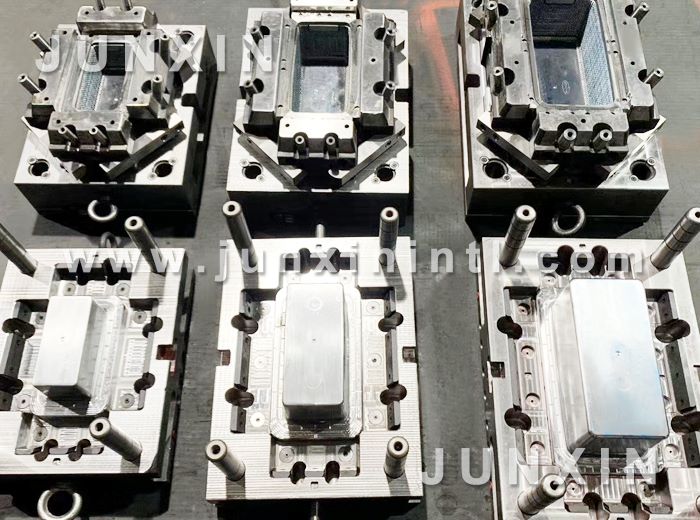

Mould Information:
Part Material: PP, PE
Mould Steel: P20; 718H etc.
Mould Cavities: Single
Mould Injection Gate: Cold runner big gate, Hot runner big gate
Surface Finishing: Mirror polishing
Mould Base: S50C
Cycle Time: 30-40S
Mould Life: More than 800K shots
Suitable Injection Machine: 350-600T
Mould Features: Full automaticity, Fine cooling system

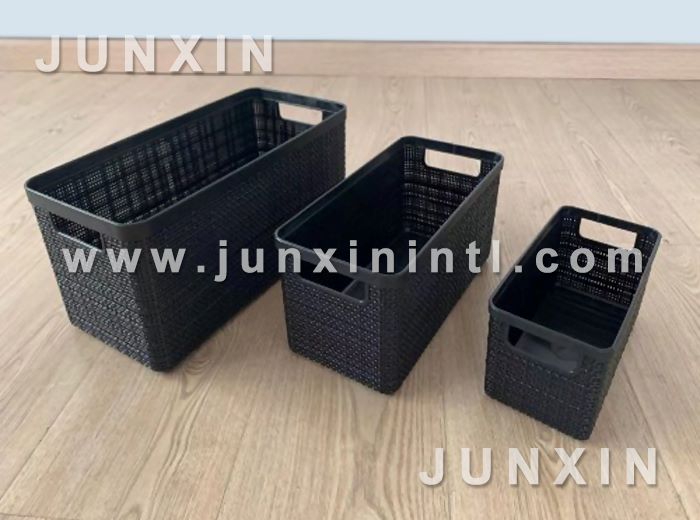

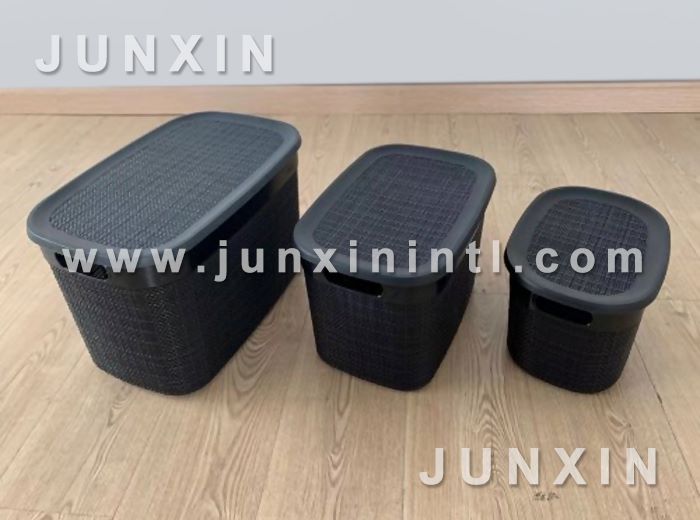

Plastic baskets are widely used in our daily life, including laundry basket, shopping basket, cosmetics storage basket, drain basket, picnic basket, fruit basket, vegetable basket, distribution basket, storage basket, rattan basket, folding basket, hand-held basket etc. As one of the leading plastic mould manufacturers in China, we have accumulated rich experience in designing and manufacturing Plastic Basket Moulds.
For plastic basket mould, Our Mould Factory has a team of rich experienced tooling engineers, mould design experts and well communicated sales specialist.

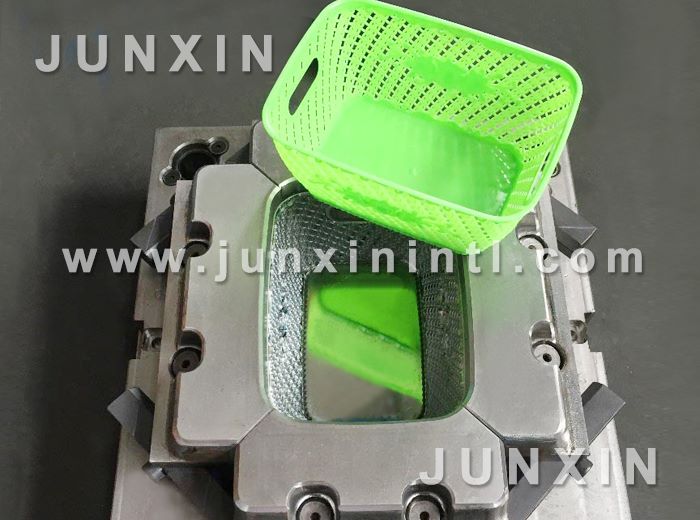

The plastic basket mould has many bumping holes. When designing the basket mould, the reasonable parting surface and R angle should be considered to avoid the phenomenon of bumping through holes and running edges. At the same time, the reasonable cooling channel is designed on both sides of the core and cavity to avoid the issue of melting line.
In terms of material selection of plastic basket mould, we generally recommend the most suitable one. Our plastic basket mould can have a long mould life under rapid and high-pressure injection.
