JX-1002

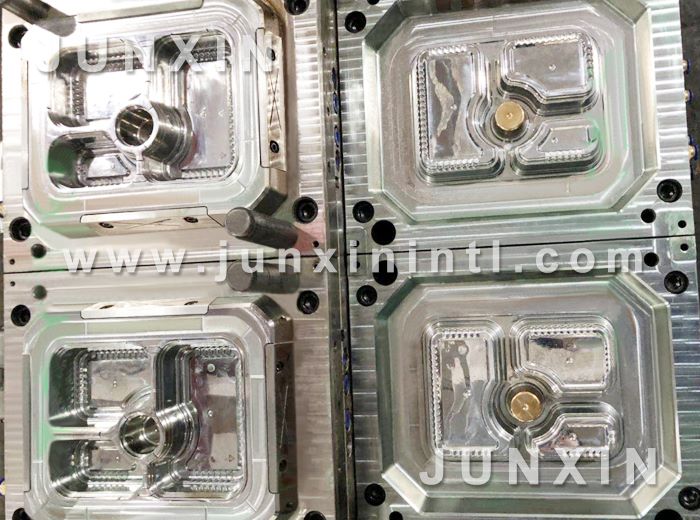

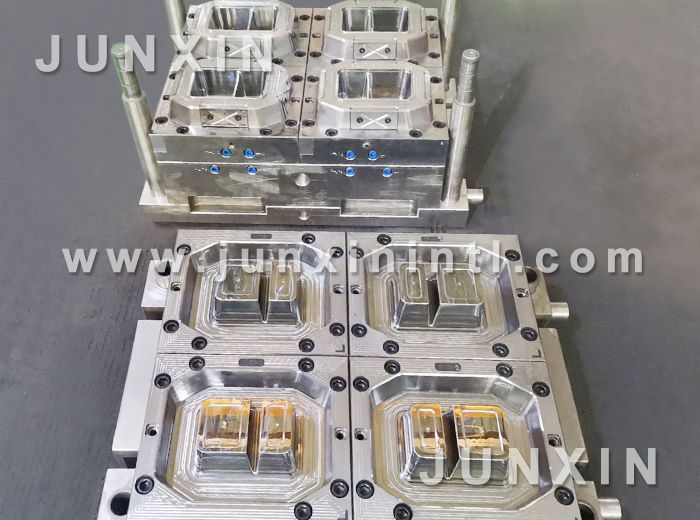

Mould Information:

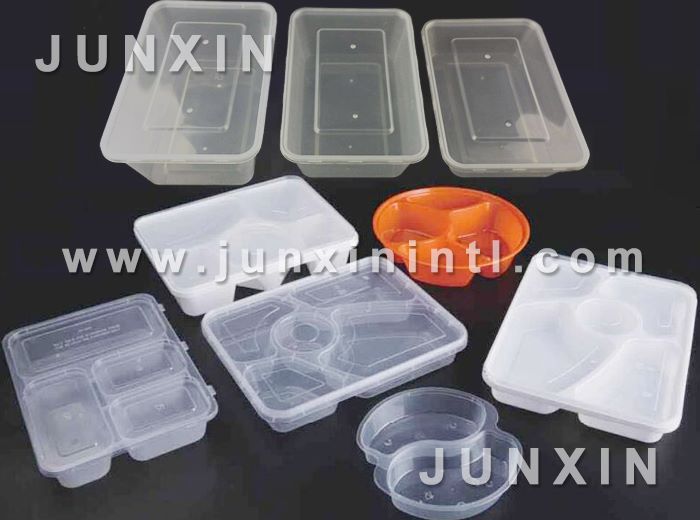

Part Material: PP, PS
Mould Steel: S136; H13 ect.
Mould Cavities: Single, Multi
Mould Injection Gate: Hot runner pin-point gate, Hot runner valve gate
Surface Finishing: Mirror polishing
Mould Base: P20
Cycle Time: 6-8S
Mould Life: More than 2 million shots
Suitable Injection Machine: 180-350T
Mould Features: Full automaticity, Fine cooling system
Thin wall mould solution
Thin-Wall mould + High speed precise moulding machine + High MFI plastic material
Thin-wall mould:
1.the wall thickness less then 0.45mm is meaning thin wall moulding.
2. thin wall mould need very precise machining and mould base to realize the even wall thickness.
3. thin wall mould mould base steel and cavity core steel must be deep hardened HRC bigger then 48.
4. thin wall injection moulding need very good cooling system in the mould.
5. thin wall mould multi-cavities need very special injection system.
6. thin wall mould need very special air venting in the mould.
7. thin wall mould need all the cavities and cores self-inter-locked.
High speed precise moulding machine:
1. the mould must suitable for high speed injection, if the machine is good enough, the cycle time can be 3.3 seconds.
2. thin wall injection moulding solution also need the high speed injection moulding machine.
High MFI plastic material:
1. thin wall mould need the plastic material MFI bigger then 40. (bigger MFI is better).
